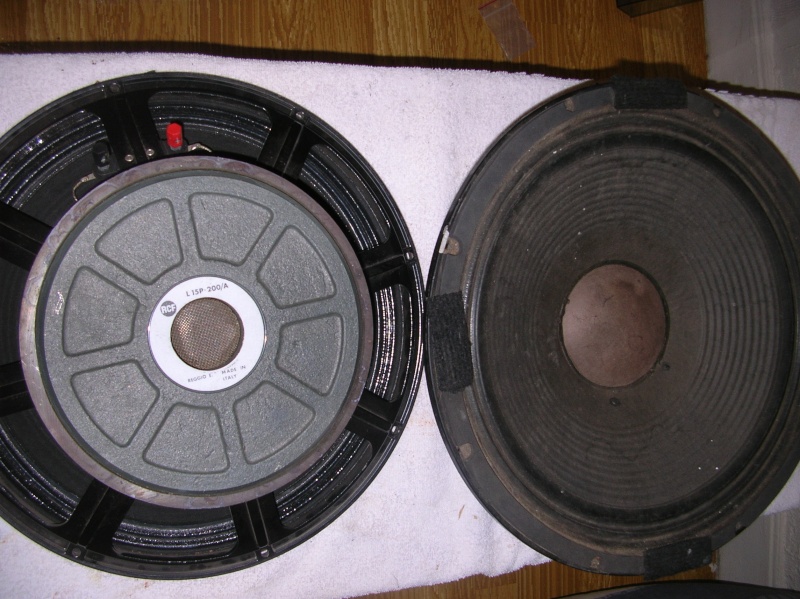

    ven hp 38cm rcf 800w rms 1600 peak L15P 200 AK8

    Message  VINZ le Dim 29 Nov - 18:09


    GENERAL SPECIFICATION
    Nominal Diameter:380 / 15 mm/inch
    Rated Impedance:8 Ω
    Program Power:1600 Watts AES
    Power handling capacity:800 Watts AES
    Sensitivity:95 dB
    Frequency Range:35 Hz÷ 1000 Hz
    Effective Piston Diameter:325 / 12.8 mm/inch
    Max Excursion Before Damage (peak to peak):36 / 1.4 mm/inch
    Minimum Impedance:7.9 Ω
    Voice Coil Diameter:100 / 4 mm/inch
    Voice Coil Material:Copper
    Voice Coil Winding Depth:24 / 0.9 mm/inch
    Number of layers:2
    Kind of layer:inside / outside
    Top Plate Thickness:9 / 0.35 mm/inch
    Cone Material:No pressed pulp
    Cone Design:Straight
    Surround Material:Polycotton
    Surround Design:Triple roll

    THIELE SMALL PARAMETERS
    Resonance frequency:38 Hz
    DC resistance:5.9 Ω
    Mechanical factor:6.8
    Electrical factor:0.38
    Total factor:0.35
    BL Factor:21.2 T · m
    Effective Moving Mass:121 gr
    Equivalent Cas air load:139 liters
    Effettive piston area:0.083
    Max. linear excursion (mathematical):9.8 mm
    Voice - coil inductance @ 1KHz:2.2 mH
    HP A RÉPARER PRIX PAR MP
